Plot nPVI V

This function loads a dataframe as input and returns a box plot for nPVI V values.

Usage

plot_npvi(
  df,
  cv_label,
  label_name,
  utterance_id,
  cv_duration,
  save_fig = FALSE,
  fig_path = NULL
)

Arguments

df

a data frame containing cv_labels, utterance_id, and cv_duration values.

cv_label

column name for the segment labels (e.g., cv_label).

label_name

a string to filter the vowels, e.g. label_name = 'vowel'.

utterance_id

column name for unique utterance IDs.

cv_duration

column name for the duration of C or V.

save_fig

default is FALSE. Change to TRUE to save the plot.

fig_path

default is NULL. Required if save_fig = TRUE.

Value

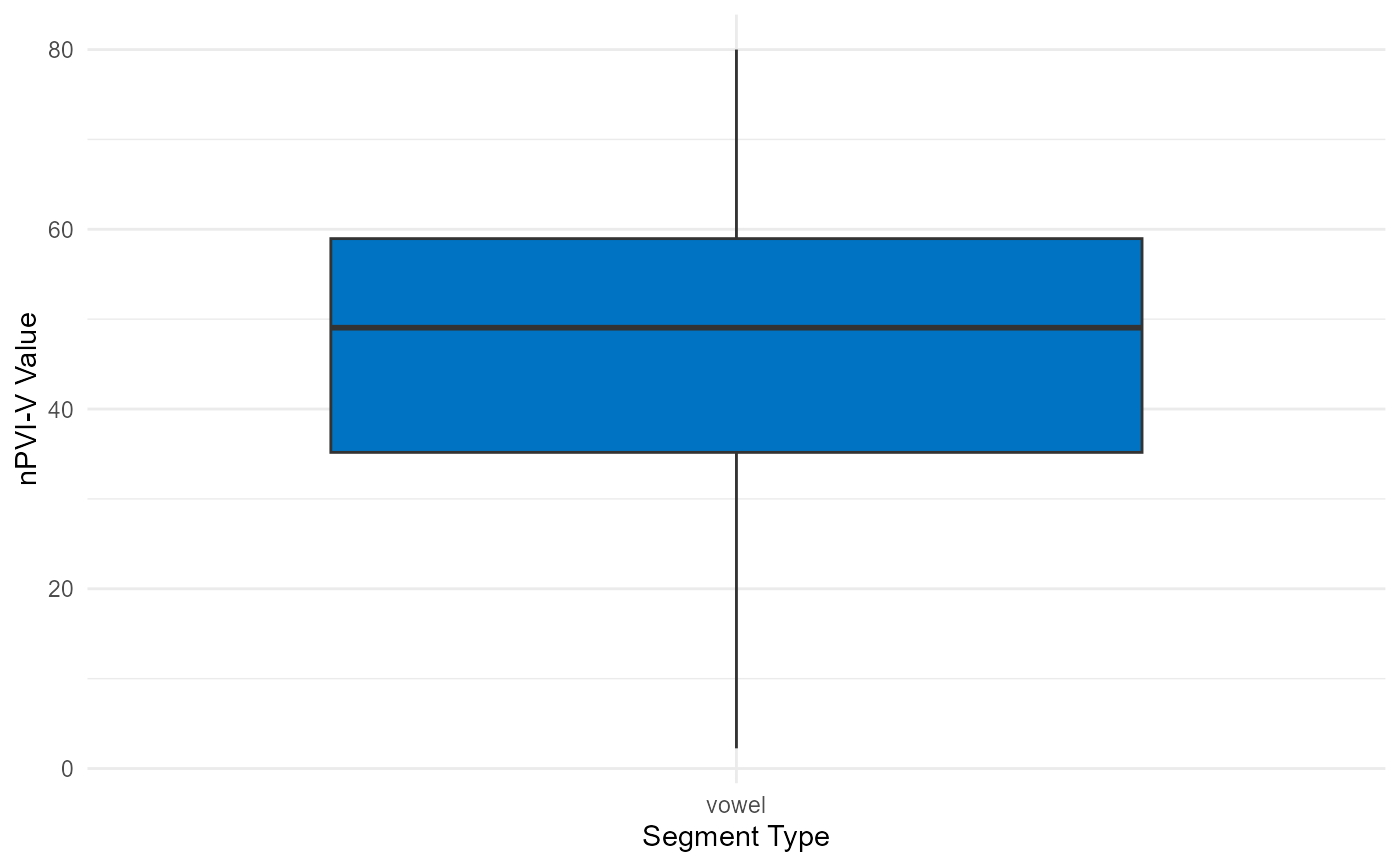

A boxplot for nPVI V values.

Author

Cong Zhang, cong.zhang@newcastle.ac.uk

Examples

df_test <- data.frame(
  cv_label = rep(c("consonant", "vowel"), 8),
  utterance_id = rep(paste0("utt_", 1:4), each = 4),
  cv_duration = c(
    0.10, 0.80, 0.20, 0.50,
    0.30, 0.30, 0.40, 0.70,
    0.30, 0.88, 0.50, 0.90,
    0.30, 0.57, 0.40, 0.97
  )
)

plot_npvi(
  df_test,
  cv_label = cv_label,
  label_name = "vowel",
  utterance_id = utterance_id,
  cv_duration = cv_duration
)
